HDPE Pipe Welding Mirror Simple
We are specialized in developing and manufacturing Simple HDPE Pipe Welding Mirror with On/Off Switch Control (SC) for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings covered with high-quality PTFE coated non-stick glass cloth.
Advance Features :
- Easily replaceable PTFE cloth & Heating element in the field if it is damaged to avoid inconvenience in the middle of critical jobs.
- Specially designed insulated handle with better grip for firm handling.
- Light in weight for easy handling.
Additional Details :
| Description | Suitable Pipe Size | Inch | Dimension( ” )(Machine Body) | Weight kg | Watt |
| 110 | 110mm | 2" | 16 x 3 x 6 | 1.6 | 400 |
| 160 | 160mm | 4" | 18 x 3 x 8 | 2.4 | 700 |
| 200 | 200mm | 6" | 21 x 3 x 11 | 5 | 800 |
| 250 | 250mm | 8" | 23 x 3 x 12 | 5.9 | 800 |
| 315 | 315mm | 10" | 19 x 6 x 20 | 8.6 | 1500 |
| 400 | 400mm | 12" | 23 x 6 x 24 | 13.4 | 2200 |
| 450 | 450mm | 16" | 25 x 6 x 26 | 18.9 | 2500 |
Product Details :
| Model | ASH |
| Brand | ASHWIN |
| Coating | PTFE |
| Weight | 1.6,2.4,5,5.9,8.6,13.4,18.9 kg |
| Working Range | 20 to 450 mm |
| Application | In construction site,in woekshop |
| Suitable pipe size | 110,160,200,250,315,400,450 mm |
Other Details :
- We think coated heater surface are inappropriate for field work where the coated surface can be easily damaged.This jeopardizes weld quality until the heater surface has been refurbished. PTFE cloth available.
- We also provide custom heating plates as per your requirements.
Hdpe Pipe Jointing Heater Digital
We are leading Manufacturer and Exporter of Hdpe Pipe Jointing Heater Digital. You Can Weld 20mm To 110mm Hdpe Pipes and Pipe Fittings.
Additional Information :
- Item Code: ADH110
- Port of Dispatch: AHMEDABAD
- Production Capacity: MAX
- Delivery Time: IMMEDIATE
- Packaging Details: INDIVIDUAL ARMOUR PACKING FOR SAFE TRANSPORT AND WOODEN BOX PACKING FOR EXPORT.
Product Details :
| Minimum Order Quantity | 1 Pack |
| Application | Hdpe Pipe Jointing |
| Automation Grade | Automatic |
| Brand | ASHWIN |
| Coating | PTFE |
| Frequency | 50 HZ |
| Machine Type | Automatic |
| Model | ADH110 |
| Packaging | 1 |
| Power Source | SINGLE PHASE |
| Voltage | AC 220 VOLT |
| Working Range | 0-110 |
| Working Temperature | 20-300 |
HDPE Pipe Jointing Heater Simple
We are leading Manufacturer and Exporter of HDPE Pipe Jointing Heater Simple. You Can Weld 20mm To 110mm Hdpe Pipes and Pipe Fittings.
Additional Information :
- Item Code: ADH110
- Port of Dispatch: AHMEDABAD
- Production Capacity: MAX
- Delivery Time: IMMEDIATE
- Packaging Details: INDIVIDUAL ARMOUR PACKING FOR SAFE TRANSPORT AND WOODEN BOX PACKING FOR EXPORT.
Product Details :
| Minimum Order Quantity | 1 Piece |
| Power Consumption | LOW |
| Material | ALLUMINIUM |
| Voltage | 220 |
| Weight | LIGHT |
| Welding Type | BUTT FUSION WELDING |
| Usage/Application | Hdpe Pipe and Pipe Fittings Welding |
| Power Source | SINGLE PHASE |
| Shape | ROUND |
| Frequency | 50 Hz |
| Phase | SINGLE |
| Packing | INDIVIDUAL |
| Brand | ASHWIN |
HDPE Pipe Welding Heater
We are leading manufacturer of HDPE Pipe Welding Heater, Hdpe Pipe Welding Hot Plate, Hdpe Pipe Jointing Mirror. You Can Weld From 20mm To 110mm Hdpe Pipes and Pipe Fittings.
Additional Information :
- Item Code: ADH110
- Port of Dispatch: AHMEDABAD
- Production Capacity: MAX
- Delivery Time: IMMEDIATE
- Packaging Details: INDIVIDUAL ARMOUR PACKING FOR SAFE TRANSPORT AND WOODEN BOX PACKING FOR EXPORT.
Product Details :
| Automation Grade: | Manual |
| Brand: | Ashwin |
| Capacity: | Max |
| Condition: | New |
| Frequency: | 50 Hz |
| Machine Type: | Manual |
| Material: | ALLUMINIUM |
| Packing: | Individual |
| Phase: | SINGLE |
| Power Consumption: | Low |
| Power Source: | SINGLE PHASE |
| Shape: | ROUND |
| Voltage: | 220 |
| Weight: | LIGHT |
| Welding Type: | BUTT FUSION WELDING |
HDPE Pipe Welding Heater Digital
We are specialized in developing and manufacturing heating plates with Microprocessor Based PID Digital Temp. Controller with Audible Timer (ADH) for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings covered with high-quality PTFE coated non-stick glass cloth.
Advance Features :
- Easily replaceable PTFE cloth & Heating element in the field if it is damaged to avoid inconvenience in the middle of critical jobs.
- Specially designed insulated handle with better grip for firm handling.
- Light in weight for easy handling.
Working Range with Various Model :
- 110 - 450: Single phase 220 V - 50/60 Hz
- 630 - 1200: Three phase 440 V - 50/60 Hz
We think coated heater surface is inappropriate for field work where the coated surface can be easily damaged.
This jeopardizes weld quality until the heater surface has been refurbished. PTFE cloth available.
We also provide custom heating plates as per your requirements.
Additional Details :
| Description | Suitable Pipe Size | Inch | Dimension( ” )(Machine Body) | Weight kg | Watt |
| 110 | 110mm | 4” | 17 x 3 x 6 | 1.8 | 400 |
| 160 | 160mm | 6” | 19 x 3 x 8 | 2.6 | 700 |
| 200 | 200mm | 8” | 22 x 3 x 11 | 4.6 | 800 |
| 250 | 250mm | 10” | 23 x 3 x 12 | 4.8 | 800 |
| 315 | 315mm | 12” | 26 x 6 x 20 | 9.2 | 1500 |
| 400 | 400mm | 16” | 30 x 6 x 24 | 14.3 | 2200 |
| 450 | 450mm | 18” | 32 x 6 x 26 | 19.8 | 2500 |
| 630 | 630mm | 24” | 51 x 12 x 41 | 65 | -- |
| 630x800 | 630-800mm | 24”x32” | -- | -- | -- |
| 630x1000 | 630-1000mm | 24”x40” | -- | -- | -- |
| 630x1200 | 630-1200mm | 24”x44” | -- | -- | -- |
Additional Details :
| Model | Digital |
| Brand: | Ashwin |
| Power Consumption:: | Low |
| Machine Type: | Automatic |
| Packaging: | Individual,1 |
| Quantity Per Pack: | 1 |

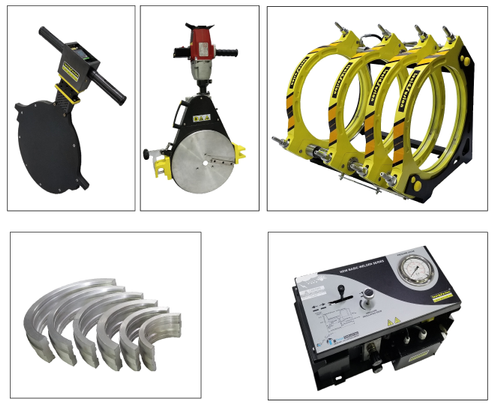

Semi Automatic HDPE Pipe Welding Machine
Basic Welder Series are Semi Automatic Based Hydraulic Butt Fusion Welding Machine which comes with completely Well Equipped Superior Quality Components to Deliver Exceptionally Well Service Life ensuring Low Maintenance and Easy Operating System.
Advance Features :
- The BWS has four high-grade aluminum casted main clamps supported by two hydraulic cylinders and hose pipes with quick couplings.
- The BWS heating plate comes with microprocessor-based PID digital temperature controller for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings.
- The BWS has Analogue 4" pressure indication along with two separate pressure setting valve for drag & jointing which make use of machine very easy with a single time setting for same size pipe.
Working Range with Various Model :
Application :
- The BWS is been designed to make the welding operations very simple for the worker at any Water Distribution Projects as well as construction building site, in pipe trenches, or in a workshop.
Additional Details :
| Minimum Order Quantity | 1 Set |
| Capacity | 50mm To 160mm |
| Brand | Lucid Fusion |
| Welding Type | BUTT FUSION WELDING |
| Material | HDPE PP PVDF |
| Power Consumption | LOW |
| Machine Type | Semi-Automatic |
