Intelligent Welder Series Butt Fusion Welding Machine

Made In India Logo

Lucid Fusion

Working Range Models : ø 50 to 450 mm

Working Range Models : ø 315 to 1200 mm

Intelligent Welder Series Butt Fusion Welding Machine are PLC Based Hydraulic Butt Fusion Welding Machine which comes with completely Well Equipped Superior Quality Components to Deliver Exceptionally Well Service Life ensuring Low Maintenance and Easy Operating System.

Application :

The IWS is been designed to make the welding operations very simple for the worker at any construction building site, in pipe trenches, or in workshop.

Specifications :

  • Working Range Models: 50 to 450 mm
  • Working Range with Various Model: 230 V - 50/60 Hz





Product Details :

Applications:In construction site,in workshop
ModelIWS 630
Voltage range::440V - 50/60Hz
Machine body Dimension::46 x 50 x 42 inch
Power source:Electric
Working Range Models:315 to 1200 mm



Advance Features :

  • The IWS has four high grade aluminum casted main clamps supported by two hydraulic cylinders and hose pipes with quick couplings.
  • The IWS heating plate comes with microprocessor based PID digital temperature controller for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings.
  • The IWS has digital pressure indication along with two separate pressure setting valve for drag & jointing which make use of machine very easy with single time setting for same size pipe.
  • The IWS has built-in digital timers for soaking & bead-up with loud audible & visual signal.
  • The IWS performs intelligently during mirroring process which provides automatic pressure drop from high to low & timer from bead up time to soaking time by buzzer signal with prefix time & pressure data in PLC.

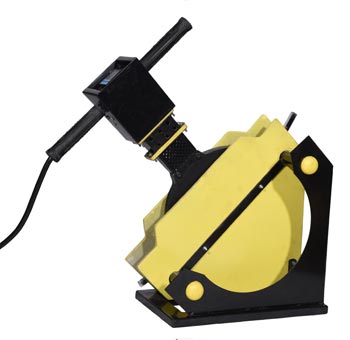

TRIMMER HEATING PLATE
Perfect Support for trimmer & heating
plate with insulated protection

PTFE coated heating plate PTFE coated heating plate with
PID DTC

self detaching deviceSelf detaching device for
heating plate

stub end deviceStub end device with three
jaw center welding

light weight trimmerLight weight trimmer with fast
removing system

reduce clamp insert Reduce clamp insert

Working Range with Various Model : 230V - 50/60Hz

  • Description
  • IWS 160
  • IWS 250
  • IWS 315
  • IWS 450
  • ø Suitable Pipe Size
  • 50 - 160 mm
  • 110 - 250 mm
  • 160 - 315 mm
  • 200 - 450 mm
  • ø Inch
  • 1½ - 6”
  • 4 - 10”
  • 6 - 12”
  • 8 - 18”
  • Dimension( ” )
    (Machine Body)
  • 28 x 15 x 16
  • 28 x 19 x 21
  • 29 x 21 x 23
  • 29 x 26 x 27
  • kg
  • 34
  • 49
  • 65
  • 75

Standard Composition :

Main Machine Body, Heating Plate with DTC, Trimming Unit, PLC based Electro Hydraulic Unit, Trimmer / Heating Plate Stand, Stub end Device, Reduce Clamp Inserts.

Optional : Pipe Rollers
