Intelligent Welder Series

Made In India Logo

Lucid Fusion

Working Range Models : ø 50 to 450 mm

Working Range Models : ø 315 to 1200 mm

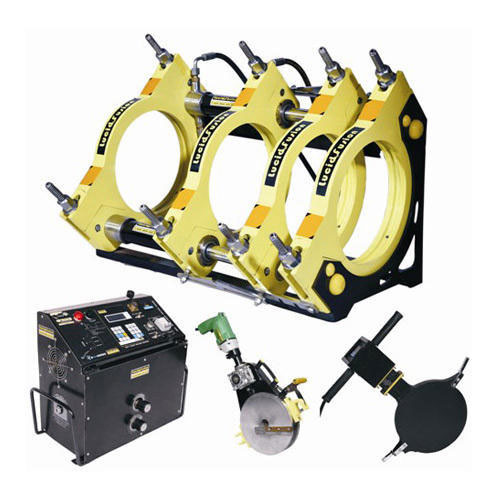

HDPE Pipe Welding Machine

Intelligent Welder Series (IWS) are PLC Based Hydraulic Butt Fusion Welding Machine which comes with completely Well Equipped Superior Quality Components to deliver exceptionally Well Service Life ensuring Low Maintenance and Easy Operating System.

Application :

The IWS is been designed to make the welding operations very simple for the worker at any construction building site, in pipe trenches, or in workshop.

Product Details :

Minimum Order Quantity1 Piece
Automatic GradeAutomatic
BrandLucid Fusion
Suitable For Pipe Size50mm to 160mm
ApplicationsIn construction site,in workshop
Power sourceElectric
Suitable pipe size50 - 160mm
Voltage230 V - 50/60 Hz
Working Range model50 - 160 mm
Model TypeHdpe Pipe Welding Machine Automatic
Ranges Of Application50mm to 160mm hdpe pp pipes

Advance Features :

  • The IWS has four high grade aluminum casted main clamps supported by two hydraulic cylinders and hose pipes with quick couplings.
  • The IWS heating plate comes with microprocessor based PID digital temperature controller for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings.
  • The IWS has digital pressure indication along with two separate pressure setting valve for drag & jointing which make use of machine very easy with single time setting for same size pipe.
  • The IWS has built-in digital timers for soaking & bead-up with loud audible & visual signal.
  • The IWS performs intelligently during mirroring process which provides automatic pressure drop from high to low & timer from bead up time to soaking time by buzzer signal with prefix time & pressure data in PLC.

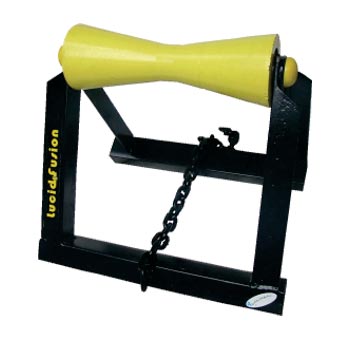

pipe roller optional
Pipe Roller Optional

PTFE coated heating plate PTFE coated heating plate with

self detaching deviceSelf detaching device
for heating plate

stub end deviceStub end device with three
jaw center welding

light weight trimmerLight weight trimmer with
fast removing system

trimmer warning light Power supply for crane,
trimmer & warning light

Working Range with Various Model : 230V - 50/60Hz

  • Description
  • IWS 630
  • IWS 800
  • IWS 1000
  • IWS 1200
  • ø Suitable Pipe Size
  • 315 - 630 mm
  • 450 - 800 mm
  • 630 - 1000 mm
  • 630 - 1200 mm
  • ø Inch
  • 12 - 24”
  • 18 - 32”
  • 24 - 40”
  • 24 - 48”
  • Dimension( ” )
    (Machine Body)
  • 46 x 50 x 42
  • --
  • --
  • --

Standard Composition :

Main Machine Body, Heating Plate with DTC, Trimming Unit, PLC based Electro Hydraulic Unit, Heater / Trimmer Lifting Electrical Crane, Trimmer Stand, Heating Plate Stand, Stub end Device, Reduce Clamp Inserts.

Optional : Pipe Rollers
