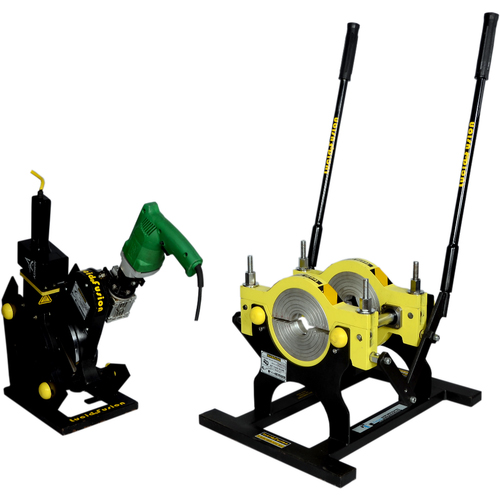

Mechanical Series Butt Fusion Welding Machine

Made In India Logo

Lucid Fusion

Working Range Models : ø 32 to 250 mm

Mechanical Welder Series (MWS) Butt Fusion Welding Machine which comes Well Equipped Superior Quality Components To Deliver Exceptionally Well Service Life ensuring Low Maintenance and Easy Operating System.

Application :

The MWS is been designed for use in workshops, on the building site, in pipe trenches, on pipe bridges etc.

Advance Features :

  • The MWS heating plate comes with microprocessor based PID digital temperature controller for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings
  • The MWS heating plate has built-in digital timer with audible signal.
  • The MWS has superior quality square thread screw with high ratio to gets reasonably fast movement for easy and quick operation.
  • The MWS has manual pressure locking system.

Light weight trimmer with fast removing system OptionalLight weight trimmer
with fast removing system Optional

Working Range with Various Model : 230V - 50/60Hz

  • Description
  • MWS 110
  • MWS 160
  • MWS 250
  • ø Suitable Pipe Size
  • 32 - 110 mm
  • 50 - 160 mm
  • 110 - 250 mm
  • ø Inch
  • 1 - 4”
  • 1½ - 6”
  • 4 - 10”
  • Dimension( ” )
    (Machine Body)
  • 23 x 18 x 15
  • 25 x 21 x 17
  • 25 x 21 x 20
  • kg
  • 26
  • 36
  • 42

Standard Composition :

Main Machine Body, Heating Plate with DTC, Reduce Clamp Inserts.

Optional : Trimming Unit

Get A Free Quote

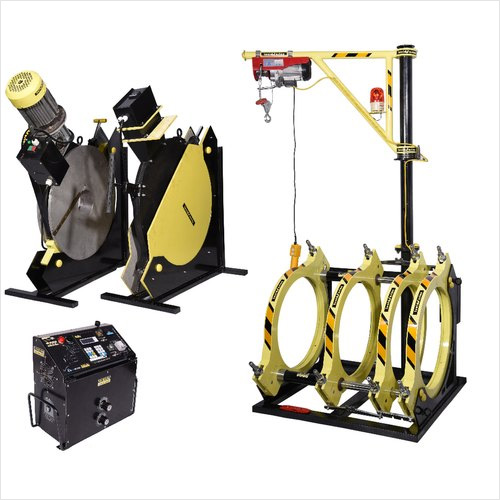

HDPE Pipe Fusion Machine

Working Range Models : ø 32 to 250 mm

PLC Based Hydraulic HDPE Pipe Fusion Machine designed for almost fully automated operation to get individual pipe joint data through USB. Well Equipped Superior Quality Components to deliver exceptionally Well Service Life ensuring Low Maintenance and Easy Operating System.

Application :

The IWS is been designed to make the welding operations very simple for the worker at any construction building site, in pipe trenches, or in workshop.


Specifications :

  • Working Range Model: 630 to 1000 mm
  • Voltage: 440V - 50/60 Hz
  • Reduce Inserts: Suitable for Pipe Size 630 / 710 / 800 / 900mm
  • Intelligent Welder Series (IWS)
  • Logic Welder Series (LWS)




Product Details :

ApplicationIn Construction Site,In Workshop
BrandLucid Fusion
DisplayDigital
Suitable for Pipe Size630 / 710 / 800 / 900 mm
Voltage440V - 50/60 Hz
Working Range Model630 to 1000 mm


Advance Features :

  • Auto Forward Reverse function with automatic pressure drop for Bead-up & Soaking.
  • Prefix Time & Welding Data in PLC.
  • USB Data Recording.
  • High grade aluminum casting.
  • PID based Digitally Controlled Heating Plate.
  • Acute Digital Pressure Indication.
  • Digital Timers for Soaking & Bead-up with loud audio-visual signal.
  • Motorized Crane to lift Heater & Facer.


Standard Composition :

Main Machine Body, Heating Plate with DTC, Trimming Unit, PLC based Electro Hydraulic Unit, Heater / Trimmer Lifting Electrical Crane, Trimmer Stand, Heating Plate Stand, Stub end Device, Reduce Clamp Inserts.

Optional : Pipe Roller

Get A Free Quote
