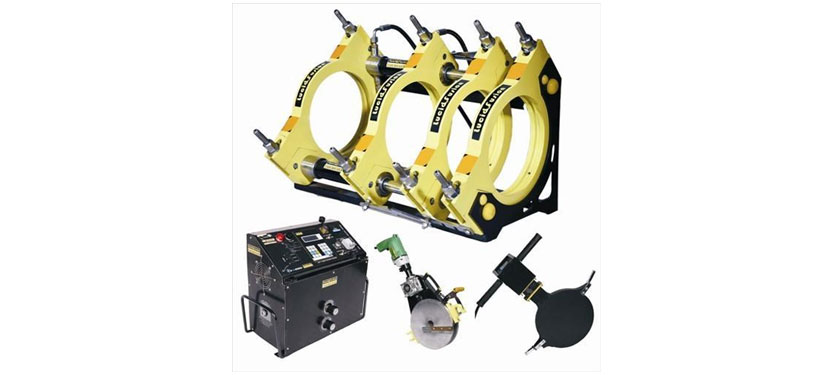

Logic Welder Series Butt Fusion Welding Machine

Made In India Logo

Lucid Fusion

Working Range Models : ø 50 to 450 mm

Logic welder series (LWS) are PLC Based Hydraulic Butt Fusion Welding Machine designed for almost fully automated operation to get individual pipe joint data through USB. Well Equipped Superior Quality Components to deliver exceptionally Well Service Life ensuring Low Maintenance and Easy Operating System.

Application :

The LWS is been designed to make the welding operations very simple for the worker at any construction building site, in pipe trenches, or in workshop.

Specifications :

  • Working Range with Various Model: 230 V - 50/60 Hz
  • Working Range Models: 50 to 450 mm

Advance Features :

  • The LWS performs automatically automatically during welding to provide total jointing process from mirroring to cooling automatically with prefix time & pressure data in PLC.
  • Get individual joint data through USB.
  • The LWS heating plate comes with microprocessor based PID digital temperature controller for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings.
  • The LWS has digital pressure indication along with two separate pressure setting valve for drag & jointing which make use of machine very easy with single time setting for same size pipe.
  • The LWS has built-in digital timers for soaking & bead-up with loud audible & visual signal.
  • The LWS performs intelligently during mirroring process which provides automatic pressure drop from high to low & timer from bead up time to soaking time by buzzer signal with prefix time & pressure data in PLC.

Product Details:

Application:In construction site,in workshop
Machine body dimension:28 x 15 x 16
Models:LWS 160
Power source:Electric
Voltage range:230 V - 50/60 Hz
Weldable material:PE,PP,PPH & PVDF pipes & fittings
Working Range Models:50 to 450 mm

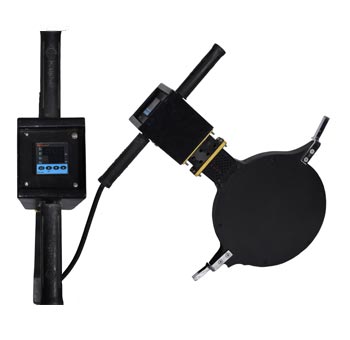

PTFE coated heating plate PTFE coated heating plate with PID DTC

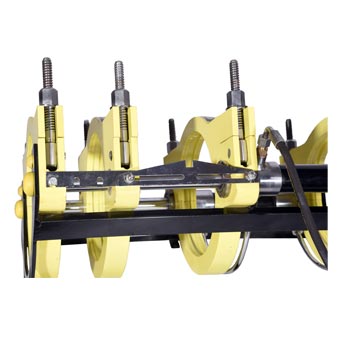

self detaching deviceSelf detaching device for heating plate

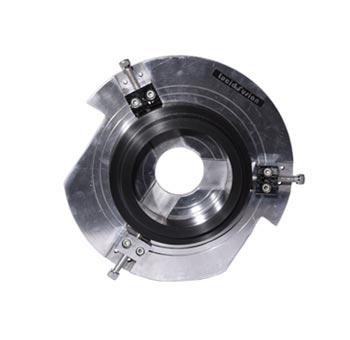

stub end deviceStub end device with three jaw center welding

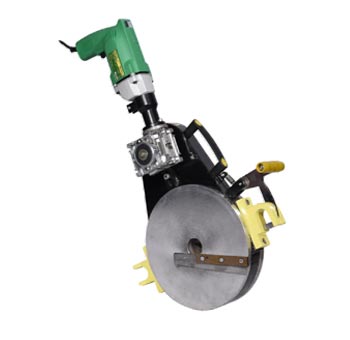

light weight trimmerLight weight trimmer with fast removing system

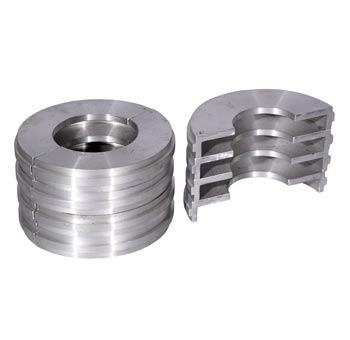

reduce clamp insert Reduce clamp insert

Working Range with Various Model : 230V - 50/60Hz

  • Description
  • LWS 160
  • LWS 250
  • LWS 315
  • LWS 450
  • ø Suitable Pipe Size
  • 50 - 160 mm
  • 110 - 250 mm
  • 160 - 315 mm
  • 200 - 450 mm
  • ø Inch
  • 1½ - 6”
  • 4 - 10”
  • 6 - 12”
  • 8 - 18”
  • Dimension( ” )
    (Machine Body)
  • 28 x 15 x 16
  • 28 x 19 x 21
  • 29 x 21 x 23
  • 29 x 26 x 27
  • kg
  • 44
  • 59
  • 75
  • 85

Standard Composition :

Main Machine Body, Heating Plate with DTC, Trimming Unit, PLC based Electro Hydraulic Unit with USB, Stub end Device, Trimmer / Heating Plate Stand, Reduce Clamp Inserts.

Optional : Pipe Rollers
