Home Icon | Products | Simple HDPE Pipe Welding Mirror

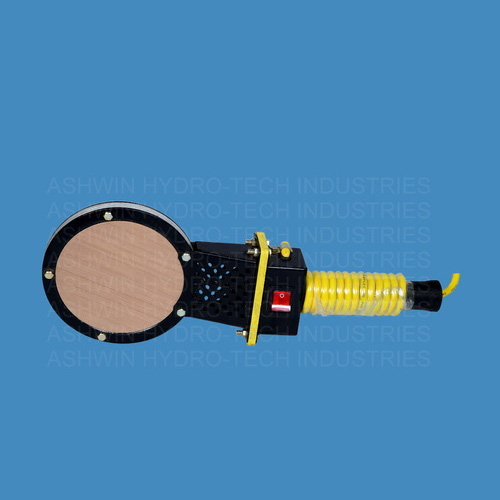

Simple HDPE Pipe Welding Mirror

Made In India Logo

Lucid Fusion

Working Range : ø 20 to 450 mm

Working Temperature Range : 40 – 300 °C

We are specialized in developing and manufacturing Simple HDPE Pipe Welding Mirror with On/Off Switch Control (SC) for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings covered with high-quality PTFE coated non-stick glass cloth.

Advance Features :

  • Easily replaceable PTFE cloth & Heating element in the field if it is damaged to avoid inconvenience in the middle of a critical jobs.
  • Specially designed insulated handle with better grip for firm handling.
  • Light in weight for easy handling.

Specifications :

  • Working Range: 20 to 450 mm
  • Working Temperature Range: 40 - 300 °C

Working Range with Various Model : 110 - 450 : Single phase 220V - 50/60Hz

  • Description
  • 110
  • 160
  • 200
  • 250
  • 315
  • 400
  • 450
  • ø Suitable Pipe Size
  • 110mm
  • 160mm
  • 200mm
  • 250mm
  • 315mm
  • 400mm
  • 450mm
  • ø inch
  • 2"
  • 4"
  • 6"
  • 8"
  • 10"
  • 12"
  • 16"
  • Dimension( ” )
    (Machine Body)
  • 16 x 3 x 6
  • 18 x 3 x 8
  • 21 x 3 x 11
  • 23 x 3 x 12
  • 19 x 6 x 20
  • 23 x 6 x 24
  • 25 x 6 x 26
  • kg
  • 1.6
  • 2.4
  • 5.0
  • 5.9
  • 8.6
  • 13.4
  • 18.9
  • Watt
  • 400
  • 700
  • 800
  • 800
  • 1500
  • 2200
  • 2500

We think coated heater surface are inappropriate for field work where the coated surface can be easily damaged.This jeopardizes weld quality until the heater surface has been refurbished. PTFE cloth available.

We also provide custom heating plates as per your requirements.
